machining center

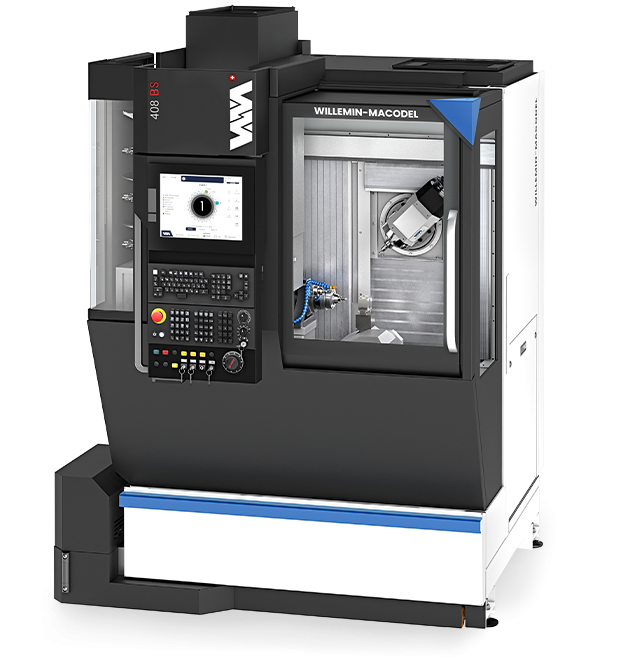

408BS
The 408BS is a multi-process machining center dedicated exclusively to milling, with 6 to 7 axes for machining complex geometries from bar or part-to-part.
The combination of the A-axis and the multi-axis automatic backworking unit enables simultaneous machining of two parts, for complete part control.
Perfect machining, with no variations in precision and unbeatable cycle times.
Double-speed bar milling
- High-performance motorized spindle with speeds of up to 42,000 min-1
- Optimum compactness with integrated aggregates limits footprint to less than 2.6m2
- Simultaneous rework unit for productivity gains of up to 40%.
- Machining of larger parts thanks to its maximum bar passage of 40 mm
- Maximum capacity of 80 on-board tools, for fast set-up changes
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
Race X – Y – Z
250 – 200 – 310 mm
Max. feed speed
40 m/min
Resolution
0.0125 µm
Linear axes
X -Y -Z stroke
50 – 120 – 130 mm
Max. feed speed
20 m/min
Horizontal axis A
Max. bar passage
Ø40 mm
Splitter interface
A4 cone
Speed in milling mode
200 min-1
Pivot pin B
Training
Torque motor
Angular movement
-15° à +100°
Max. feed speed
250 min-1
Resolution
0.0001°
Rework unit
Positions
3 positions: 0° – 90° – 180°.
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 min-1 (42’000 min-1)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Motorized spindle – S3
Interface
HSK-E25
Max. speed
45’000 min-1
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
Masked time
Tool magazine – S3
Number of tools
8
Tool management
Integrated
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
Dimensions
Dimensions (W x D x H)
1685 x 1795 x 2305 mm
Floor area
3 m2
Other options
For optimum customization of your needs.
S1 motorized spindle
Watering in the center of the swivel joint
Horizontal axis A
Various clamps
Spindle reduction tube
Ø42 mm bar passage
Counter-operation
Pneumatic or hydraulic clamping vice
Peripheral
Bar feeder and bar feeder
Cooling unit
Filtration
Chip tray with drawer
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion vapour extractor
Automation
Robot or manipulator
Various options
Fire protection
S1 /S3 tool measurement
Part inspection S1 / S3
