machining center
808S2
The 808S2 is a 5-axis machining center with linear motors and Direct Drive rotary axes, dedicated to the machining of complex, high-precision parts up to 120 mm.
Its high dynamics, thermal stability and energy optimization make it a particularly effective solution for the manufacture of high value-added parts requiring precision and surface quality.

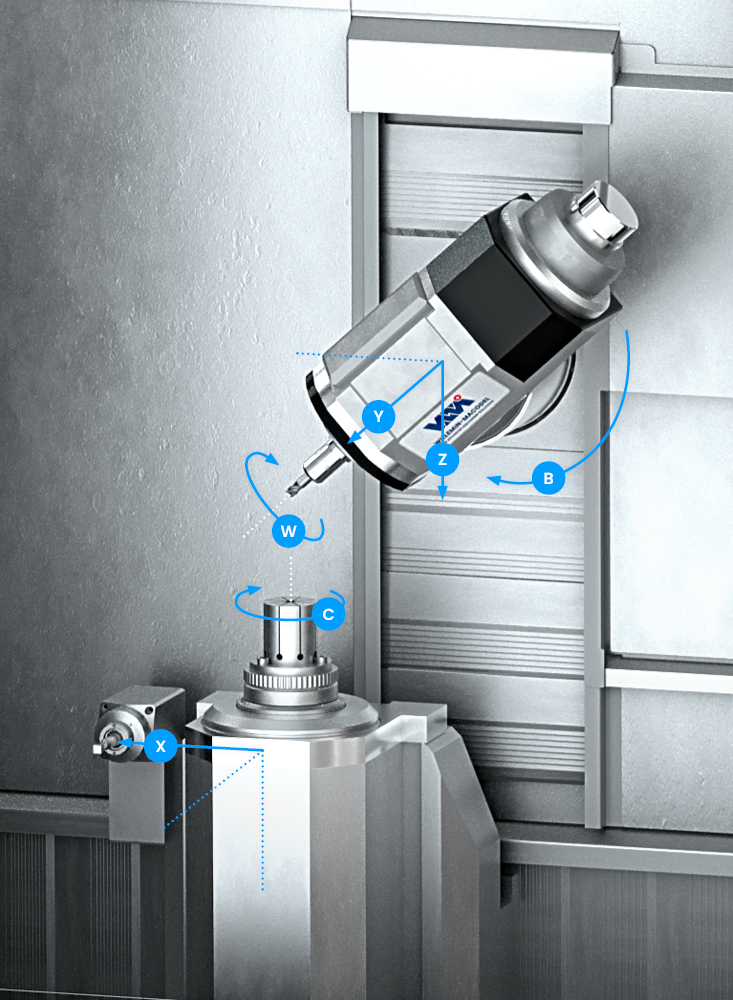

Thanks to its advanced kinematics and high-speed motorized spindle, it enables combined milling and turning operations with great precision and versatility.
Ultra-compact synergy of turning and simultaneous 5-axis machining
- “Full Linear” technology for axes equipped with direct-drive motors
- High-performance motorized spindle with speeds of up to 60,000 rpm
- Machining of parts up to 120 mm in diameter
- C-axis rotary indexing units with turning speeds of up to 6,000 rpm
- A tool/part/pallet magazine with a capacity of up to 137 tool positions
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
Drive
Linear motors
X – Y – Z travel
370 – 120 – 210 mm
Max. feed speed
60 m/min
Continuous feed forces X – Y – Z
720 – 720 – 480 N
Resolution
0.0125 µm
B-axis swivel
Drive
Torque motor
Angular movement
-90° to +120°
Continuous torque
24 Nm
Max. speed
120 rpm
Resolution
0.0001°
C-axis rotary indexing unit
Drive
Torque motor
Continuous torque
8 Nm from 0 to 3’000 rpm
Power
2.5 kW
Max. speed
6’000 rpm
Resolution
0.0001°
Milling spindle – S1
Interface
HSK-A25
S1 torque
3 Nm from 0 to 27’000 rpm
Torque S6
1.1 Nm
Power
8.3 kW
Max. speed
42’000 rpm (60’000 rpm)
Lubrication
Air-oil
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tool positions
74 (137)
Chip-to-chip change
< 5 sec
Max. tool diameter
Ø35 mm
Max. tool diameter (free adj. places)
Ø70 mm
Max. tool weight
1 kg
Chip bin
Chip volume
50 L
Filtration
200 µm
Oil pan
Oil volume
80 L
Coolant flow rate
40 L/min
Programmable HP coolant supply
0 to 80 bar, 4 L/min
Hydraulic power pack
Operating pressure
50 bar
Dimensions
Dimensions (W x D x H)
980 x 1425 x 2070 mm
Floor area
1.4m2
Other options
To customize your machine to your specific needs.
Motorized spindle – S1
Through-spindle coolant via a rotary union
Peripheral
Cooling unit
Automation
Robot or manipulator
Filtration
HP 80 bar
Oil or emulsion mist extractor
Various options
Fire protection
S1 tool measurement
S1 workpiece inspection
