machining center
701S2
The 701S2 is truly a pioneer in micro-machining. It is the first machining center to exploit the dynamics and rigidity of parallel 3-axis delta kinematics. It works by interpolation to sub-micron accuracies in very high-speed machining (VHSM).
Primarily dedicated to the watchmaking sector, it is equipped with a turning unit that enables complex parts such as plates and bridges to be machined on both sides, with repositioning precision in the micron range. It can also perform machining operations on the edge.
The pioneer of delta parallel kinematics micro-machining
- High-performance motorized spindle with speeds of up to 80,000 min-1
- 72-position tool magazine and 12-piece blank magazine for series changes in an instant
- Maximum compactness with a footprint of just 1m2
- Incredibly low power consumption of just 2 kW
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
Work volume
Ø52 mm
Height
32 mm
Max. feed speed
72 m/min
Max. machining acceleration
10 m/s2
Resolution (measurement rules)
0.01 µm
Spindle with integrated motor
Cylindrical interface
Ø6 mm
Speed
80’000 min-1
Power S1/S6
4.1 kW/8.4 kW
Couple S1/S6
0.5 Nm/1.0 Nm
DMS (Direct Measuring System)
Integrated
Tool magazine
Number of tools
72
Tool management
Integrated
Numerical control
BECKHOFF
PC base
Dimensions
Dimensions (W x D x H)
1050 x 1005 x 1610 mm
Floor area
1.1m2
Other options
For optimum customization of your needs.
Pallet warehouse
Additional 12-position magazine
Multi-position carrycot
High-precision double-sided positioning
Various options
Oil vapour treatment
Micro-lubrication
Fire protection
Vacuum pump
Cooling unit
Automation
Robot

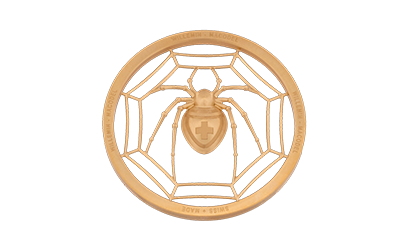

Application examples
Our team of experts is here to make your project a success.
Dial
Brass
Dial
Brass
Turntable
Brass
Turntable
Brass
Bridge
Brass
Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
