machining center
508MT2

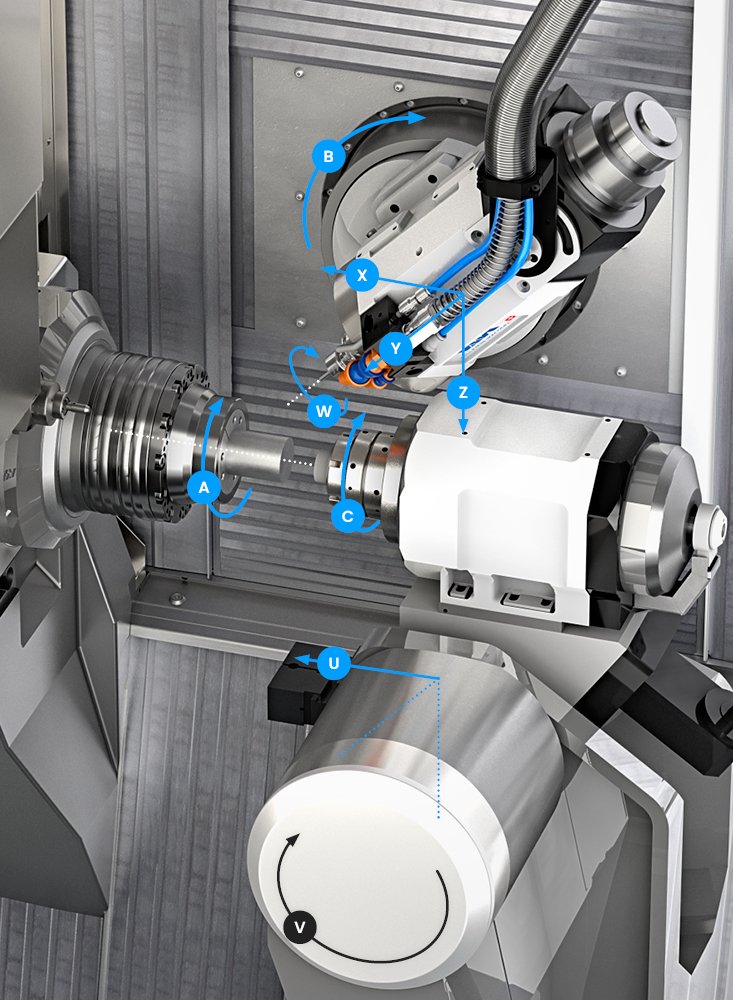

The 508MT2 is a 6- to 9-axis multi-process machining center with linear motors (milling and turning) for machining complex geometries from bar stock or individual blanks.
Thanks to its backworking turret, it features a vise, tailstock and swivel counter-spindle for 5-axis milling or turning operations on rotationally symmetrical parts.
Its high dynamics and thermal stability make it a highly productive machining center for the manufacture of high value-added parts requiring high precision and excellent surface finishes.
Multi-process machining, from single parts to high-volume production
- “Full Linear” technology for axes equipped with direct-drive motors
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Maximum bar passage of 65 mm with turning capacity up to 6’000 rpm
- 3-position secondary-operation turret with integrated counter-spindle and turning capacity of up to 8,000 rpm
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
Drive
Linear motor
X – Y – Z travel
400 – 200 – 385 mm
Max. feed speed
60 m/min
Resolution
0.0125 µm
Horizontal axis A
Drive
Torque motor
Max. bar passage
Ø42 mm (51/65 mm)
Rotary indexing unit interface
A4 (A5/A6) cone
S1 / S6 torque
72 Nm/96 Nm
Speed in milling mode
200 rpm
Turning mode speed
6’000 rpm
B-axis swivel
Drive
Torque motor
Angular movement
-45° to +115°
Resolution
0.0001°
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
Dimensions
Dimensions (W x D x H)
1870 x 2165 x 2300 mm
Floor area
4 m2
Other options
To customize your machine to your specific needs.
Backworking turret
Positions
(3 useful/1 free)
U-axis travel
(360 mm)
Pick-up spindle
Drive
(Torque motor)
Rotary indexing unit interface
(Cone A4)
Rotational speed milling mode
(200 rpm)
Spin speed turning mode
(8’000 rpm)
Motorized spindle – S1
Through-spindle coolant via a rotary union
Horizontal axis A
Various clamps
Spindle reduction tube
Backworking
Pneumatically or hydraulically actuated vise
Pick-up collet
Peripheral
Bar pusher and bar loader
Cooling unit
Filtration
Chip tray with drawer
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion mist extractor
Automation
Robot or manipulator
Various options
Fire protection
S1 tool measurement
S1 workpiece inspection

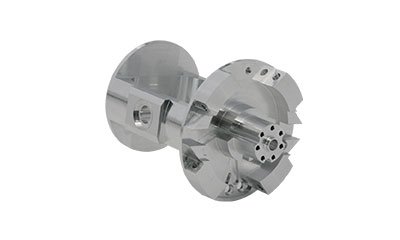

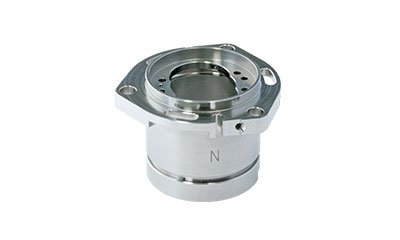

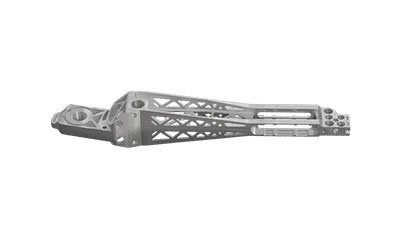

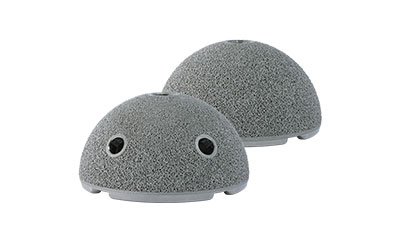

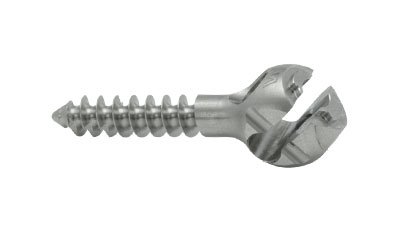

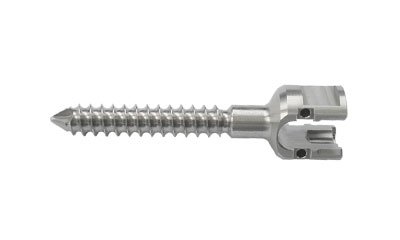

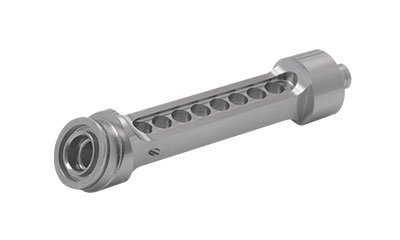

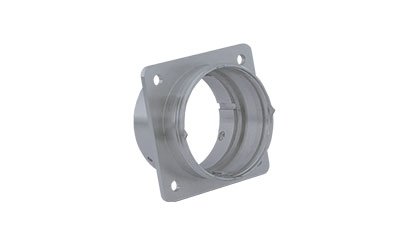

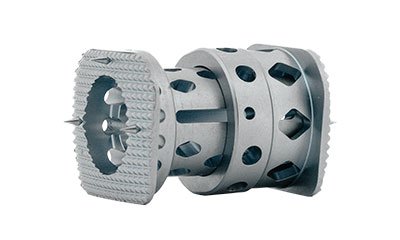

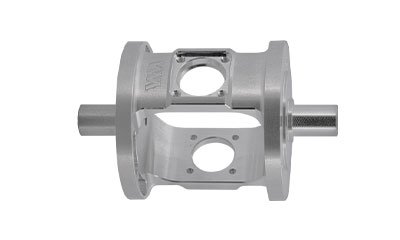

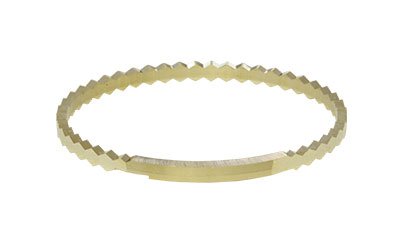

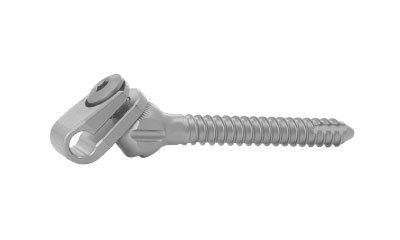

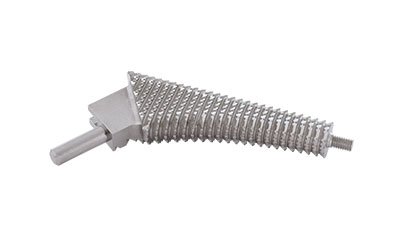

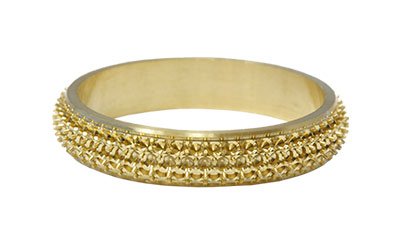

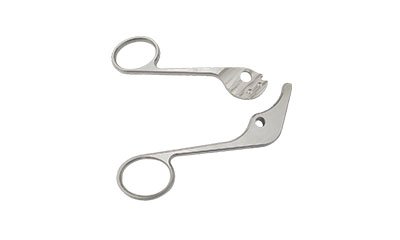

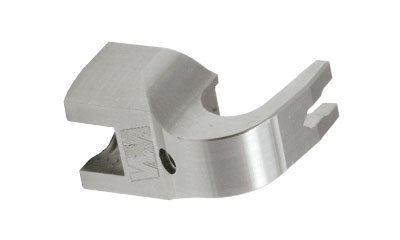

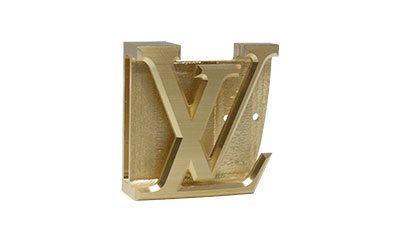

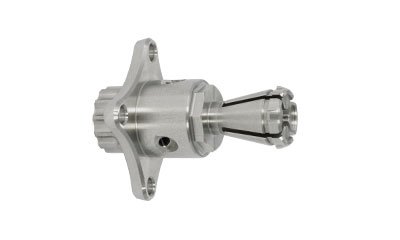

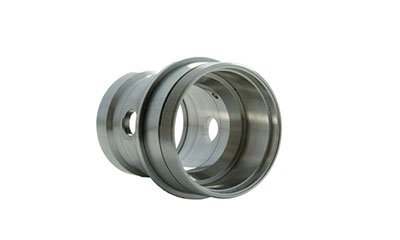

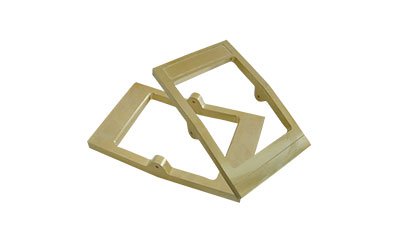

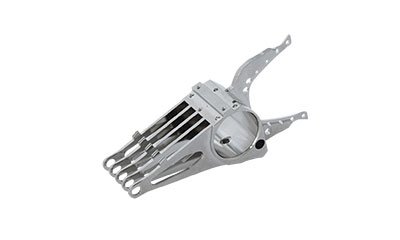

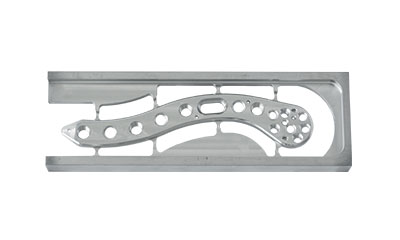

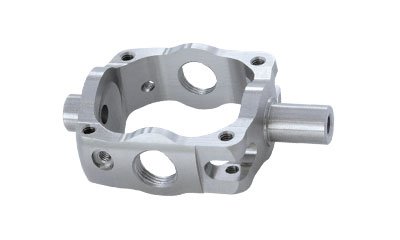

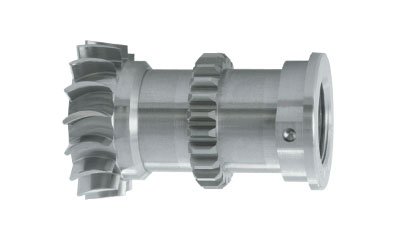

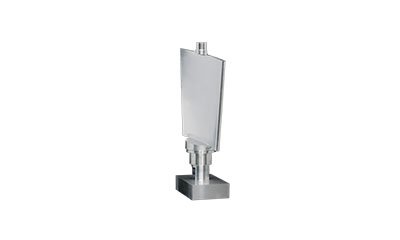

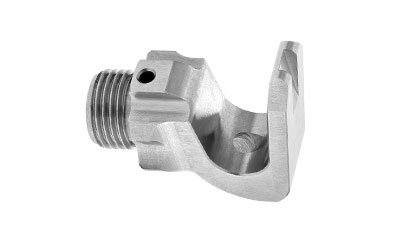

Application examples
Our team of experts is here to make your project a success.
Mid-section
Stainless steel
Locking and crimping
Stainless steel
Baseplate, bridges, and bezel
Brass
Date
Steel

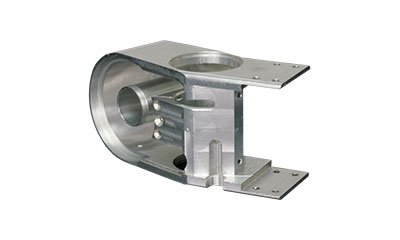

Carter
Aluminum
