machining center

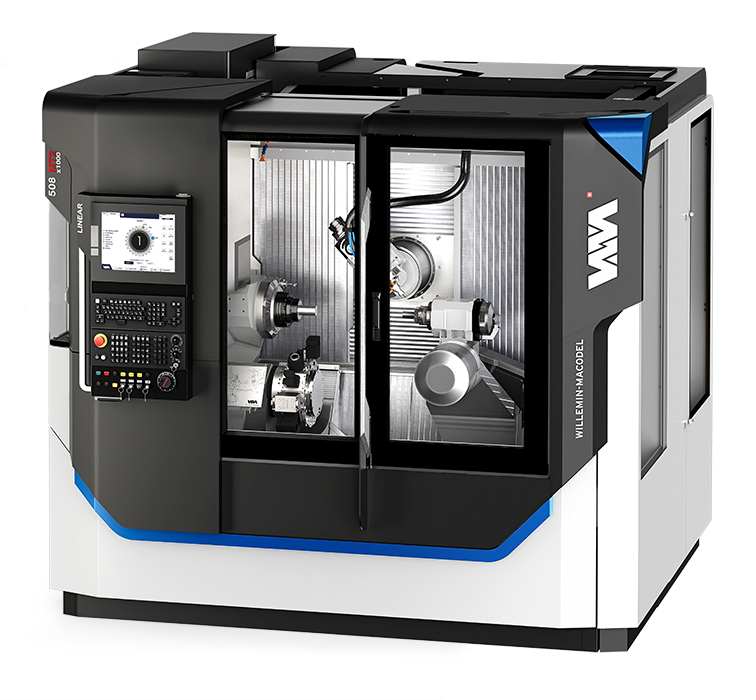

508MT2 X1000
The 508MT2 X1000 is a 6- to 9-axis multi-process machining center with linear motors (milling and turning) for machining complex geometries from bar stock or individual blanks.
What sets this machining center apart is not only its large-format machining area, but also its ability to machine simultaneously with its motorized milling spindle and turning turret, without compromise.
Its high dynamics and thermal stability make it a highly productive machining center for the manufacture of high value-added parts requiring high precision and excellent surface finishes.
Multi-process machining designed to slash cycle times
- “Full Linear” technology for axes equipped with direct-drive motors
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Maximum bar passage of 65 mm with machining capacity up to 1000 mm in X axis
- 2 to 3 position turret with integrated counter-spindle, vise and/or tailstock
- Turning turret with 12 motorized positions and a turning capacity of up to 12,000 rpm
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).

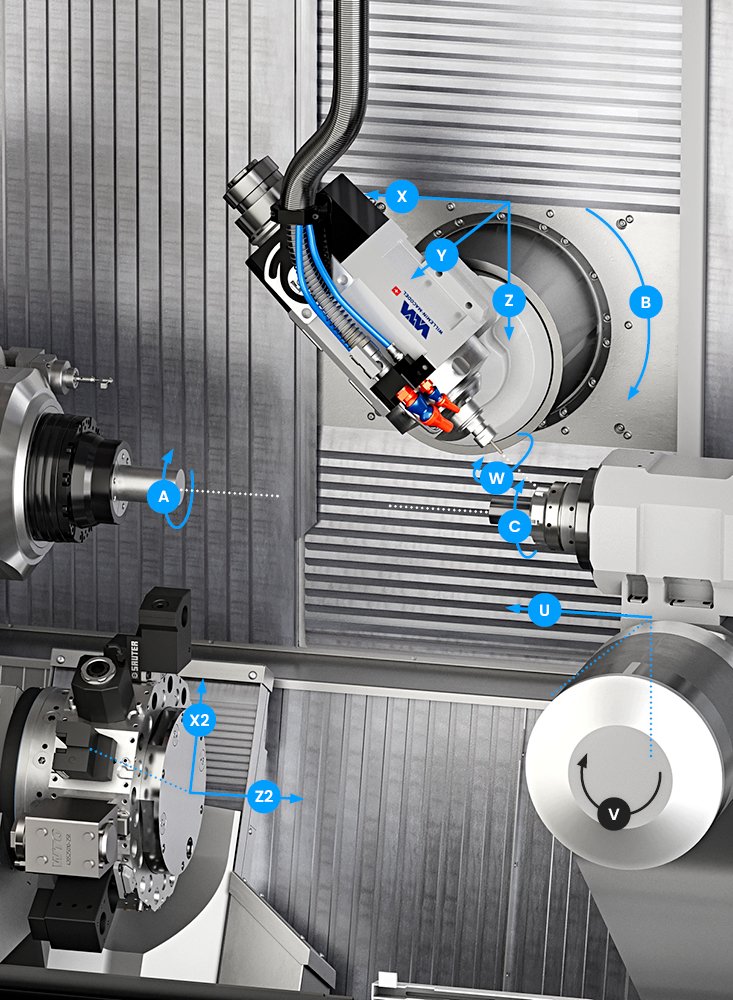

Main linear axes
Drive
Linear motor
X – Y – Z travel
1’000 – 200 – 385 mm
Max. feed speed
60 m/min
Resolution
0.0125 µm
Horizontal axis A
Drive
Torque motor
Max. bar passage
Ø51 mm (65 mm)
Rotary indexing unit interface
A6 cone
S1 / S6 torque
72 Nm/96 Nm
Speed in milling mode
200 rpm
Turning mode speed
6’000 rpm
B-axis swivel
Drive
Torque motor
Angular movement
-45° to +115°
Resolution
0.0001°
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
Dimensions
Dimensions (W x D x H)
2505 x 2165 x 2300 mm
Floor area
5.4 m2
Other options
To customize your cell to your specific needs
Backworking turret
Pos. with turn. turret
(2 useful/1 free)
Pos. without turn. turret
(3 useful/1 free)
U-axis travel
(560 mm)
Pick-up spindle
Rotary indexing unit interface
(Cone A4)
Rotational speed milling mode
(300 rpm)
Spin speed turning mode
(8’000 rpm)
Turning turret
Interface
(Tri-fix)
Capacity
(12 positions)
Milling speed
(12,000 rpm)
Indexing time
(0.6 sec)
Motorized spindle – S1
Through-spindle coolant via a rotary union
Horizontal axis A
Various clamps
Spindle reduction tube
Backworking
Pneumatically or hydraulically actuated vise
Counter-spindle
Tailstock
Peripheral
Bar pusher and bar loader
Cooling unit
Filtration
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion mist extractor
Automation
Robot or manipulator
Various options
224-position tool magazine
Fire protection
Tool measurement S1 / Turret
S1 workpiece inspection
Application examples
Our team of experts is here to make your project a success.
Mid-section
Stainless steel
Connector
Aluminum
Gyroscope
Stainless steel
Gyroscope
Aluminum
Gyroscope
Aluminum

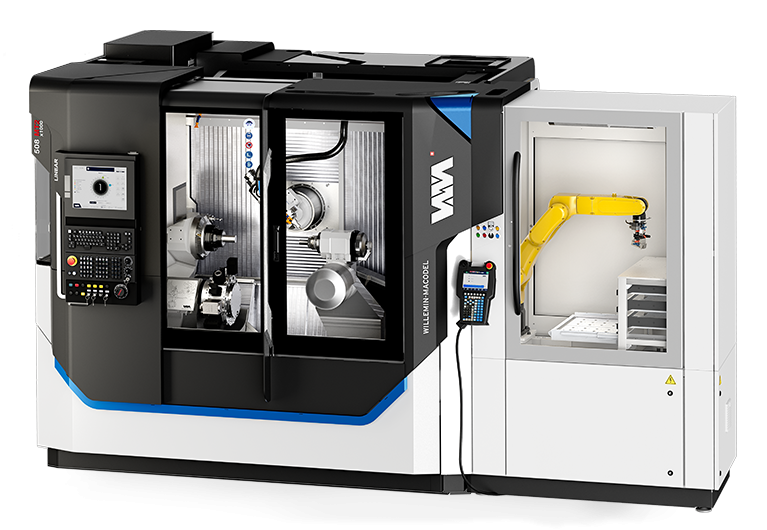

Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
