machining center
501S2

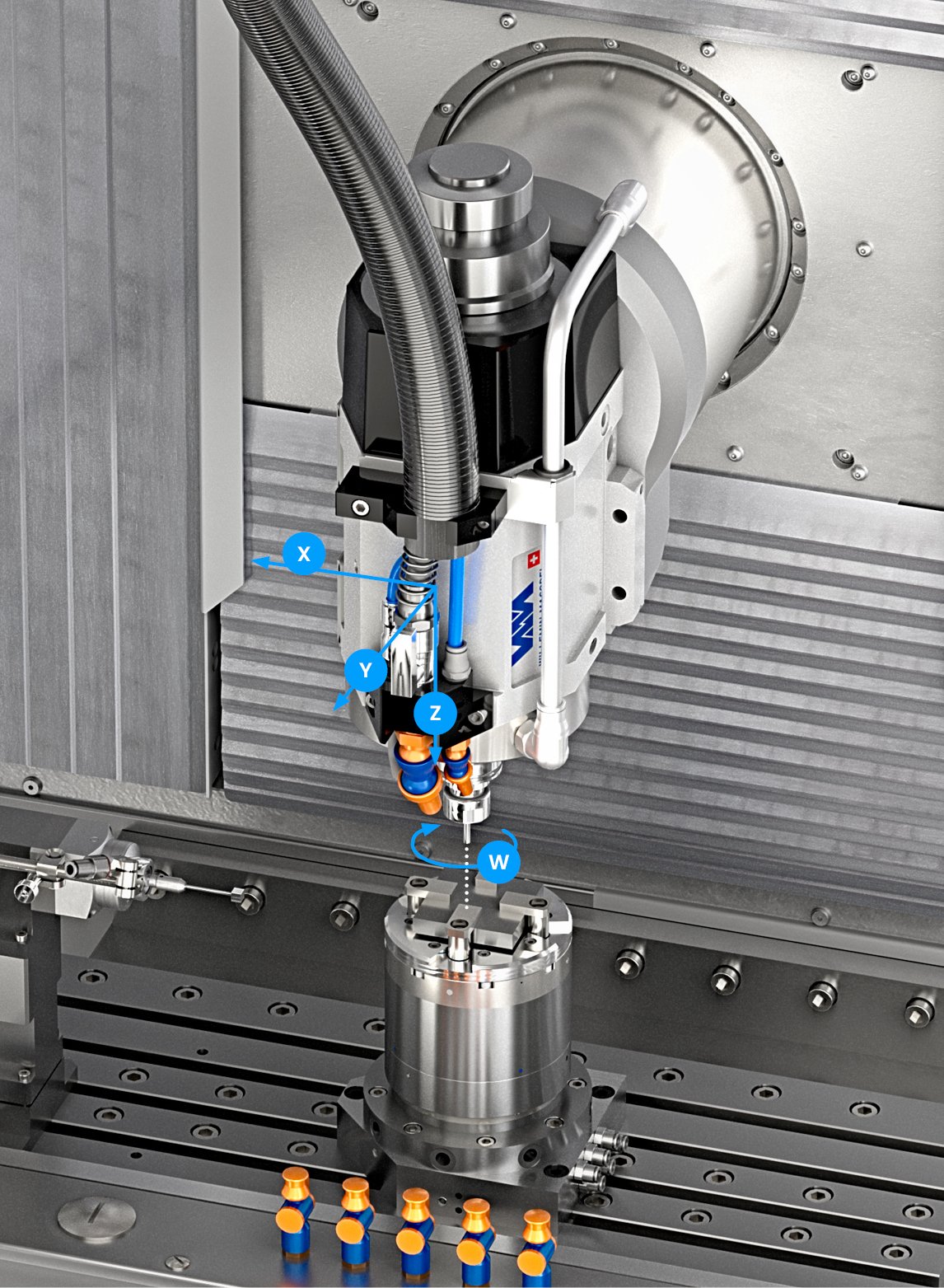

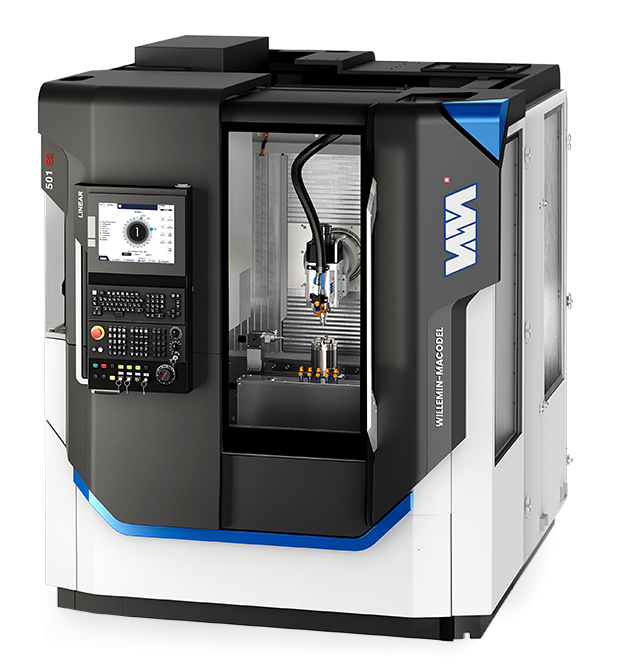

The 501S2 is a 3- to 4-axis linear motor machining center (milling) with vertical spindle.
Its high dynamics and thermal stability make it a highly productive machining center for the manufacture of high value-added parts such as watch mainplates and bridges, requiring high precision and excellent surface finishes.
Combining 3-axis technology with extreme precision
- “Full Linear” technology for axes equipped with direct-drive motors
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Grooved table for machining parts with a surface area of 400 x 200 mm
- Maximum capacity of 120 on-board tools, to optimize machining rates
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
X – Y – Z travel
400 – 200 – 385 mm
Max. feed speed
60 m/min
Resolution
0.0125 µm
Grooved table
Dimensions
600 x 280 mm
Grooves
12-H8
Number of grooves
4
Centre-to-centre
80 mm
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72/96/120)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
HEIDENHAIN
(TNC 7)
Dimensions
Dimensions (W x D x H)
1870 x 2165 x 2300 mm
Floor area
4 m2
Other options
To customize your machine to your specific needs.
Motorized spindle – S1
Through-spindle coolant via a rotary union
Peripheral
Cooling unit
Filtration
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion mist extractor

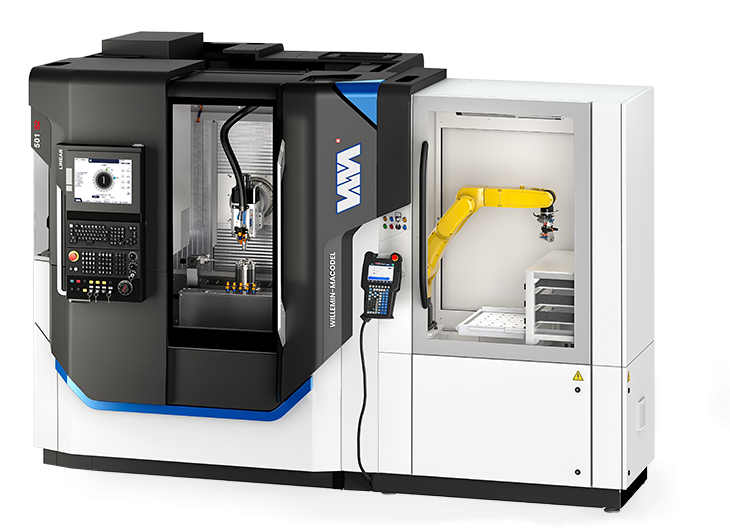

Automation
Robot or manipulator
Various options
224-position tool magazine
Fire protection
S1 tool measurement
S1 workpiece inspection
Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
