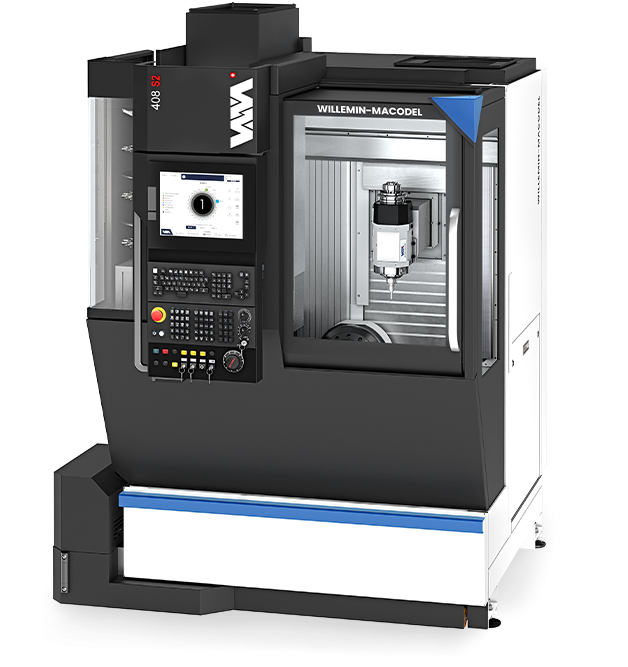

machining center

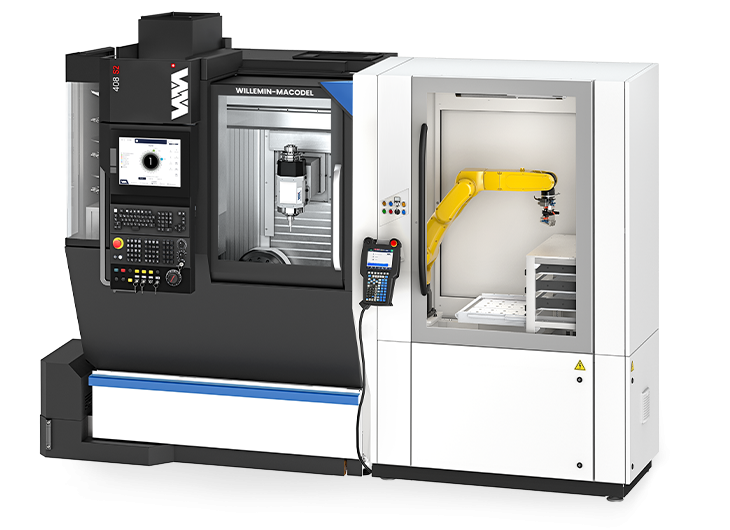

408S2

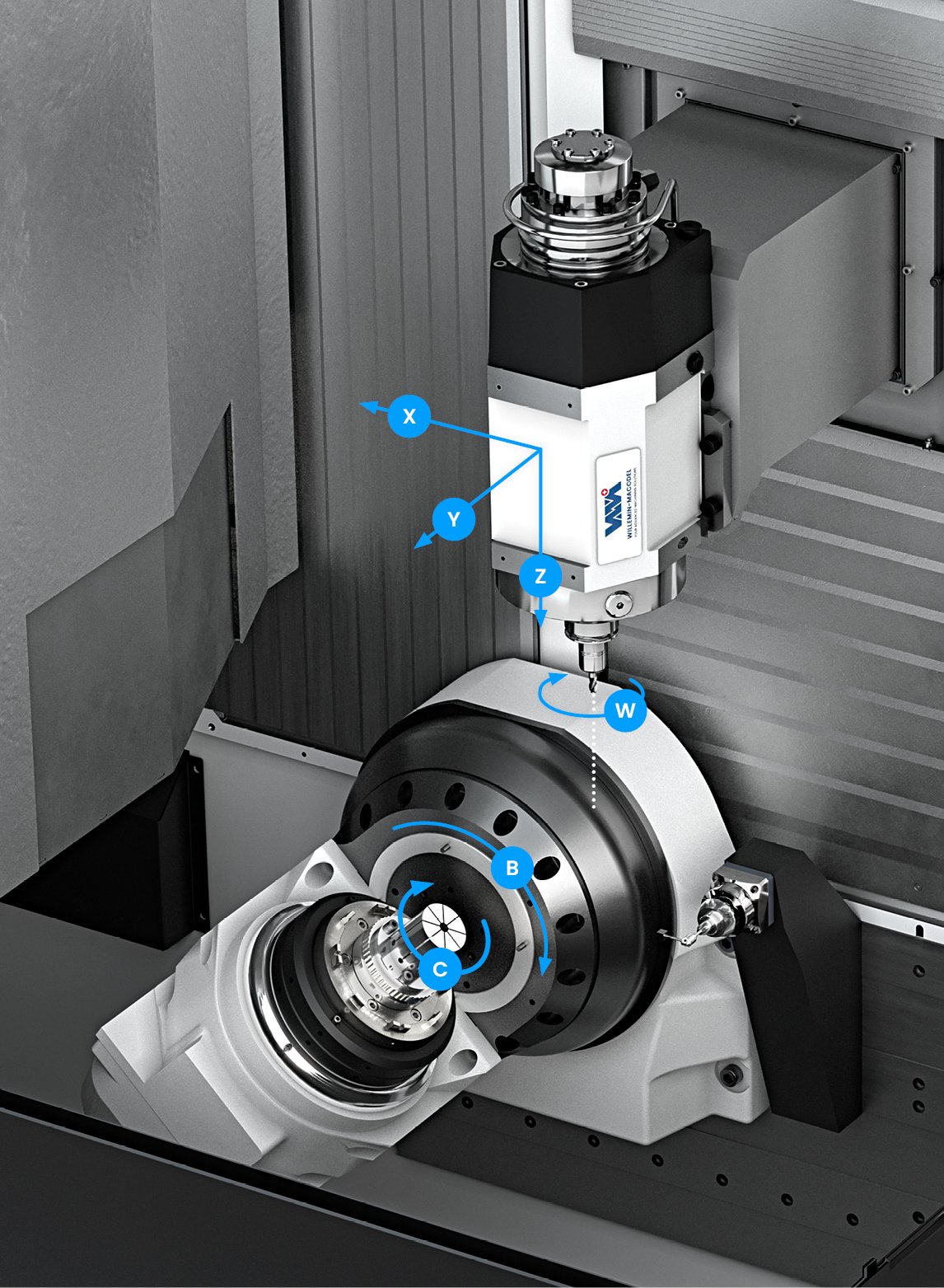

The 408S2 is a 5 to 6-axis machining center (milling and turning), dedicated to the machining of complex prismatic parts. It can be fitted with a wide range of clamping fixtures for machining blanks, as well as different pallet standards.
Thanks to its two rotary indexing units, it allows turning and milling operations with high angular resolution.
The synergy of turning and simultaneous 5-axis machining
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Optimal compactness with integrated components, limiting the footprint to just 3 m².
- Machining of parts up to a diameter of 150 mm
- C-axis rotary indexing units with turning speeds of up to 4,000 rpm
- Maximum capacity of 96 on-board tools, to optimize machining rates
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
X – Y – Z travel
250 – 200 – 310 mm
Max. feed speed
40 m/min
Resolution
0.0125 µm
B-axis swivel
Drive
Torque motor
Angular movement
-100° to +30°
Max. feed speed
120 rpm
Resolution
0.0001°
C-axis rotary indexing unit
Drive
Torque motor
S1 torque
20 Nm
Rated torque
38 Nm
Speed in milling mode
200 rpm
Turning mode speed
(4’000 rpm/3’000 rpm)
Table
Ø180 mm
Load capacity
12 kg
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72/96)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
HEIDENHAIN
(TNC 7)
Dimensions
Dimensions (W x D x H)
1685 x 1795 x 2305 mm
Floor area
3 m2
Other options
To customize your cell to your specific needs
Motorized spindle – S1
Through-spindle coolant via a rotary union
Peripheral
Cooling unit
Automation
Robot or manipulator
Filtration
Chip tray with drawer
HP paper filter 80 or 150 bar
Precious metals kit
Oil or emulsion mist extractor
Various options
Fire protection
S1 tool measurement
S1 workpiece inspection

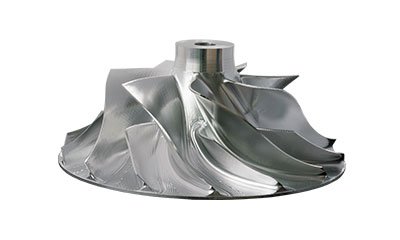

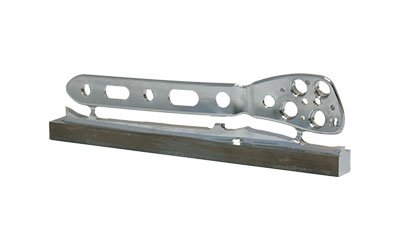

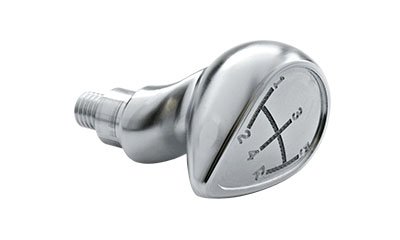

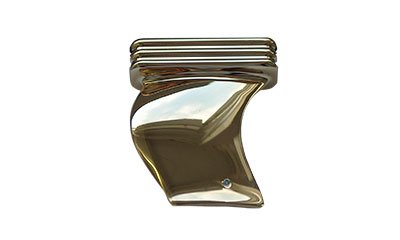

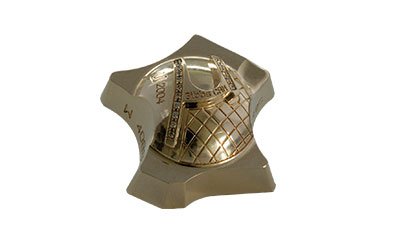

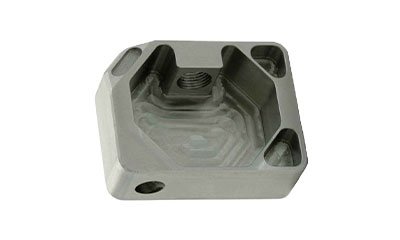

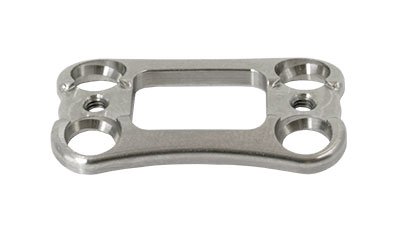

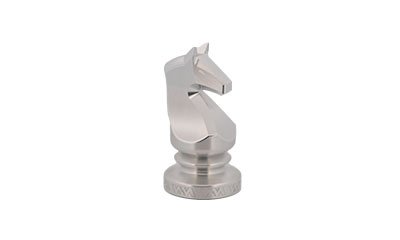

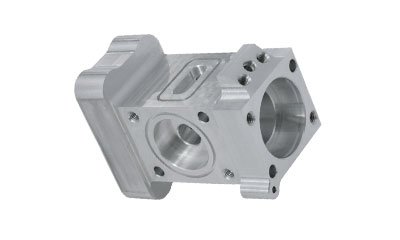

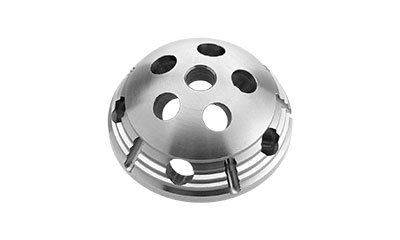

Application examples
Our team of experts is here to make your project a success.
Locking and crimping
Stainless steel
Background
Brass
Glasses
Brass
Bridge
Brass

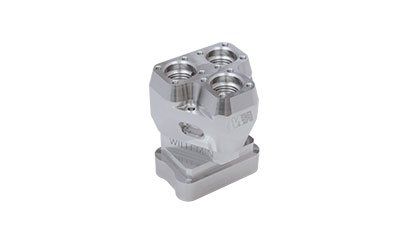

Distributor
Steel
Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
