machining center
408MT

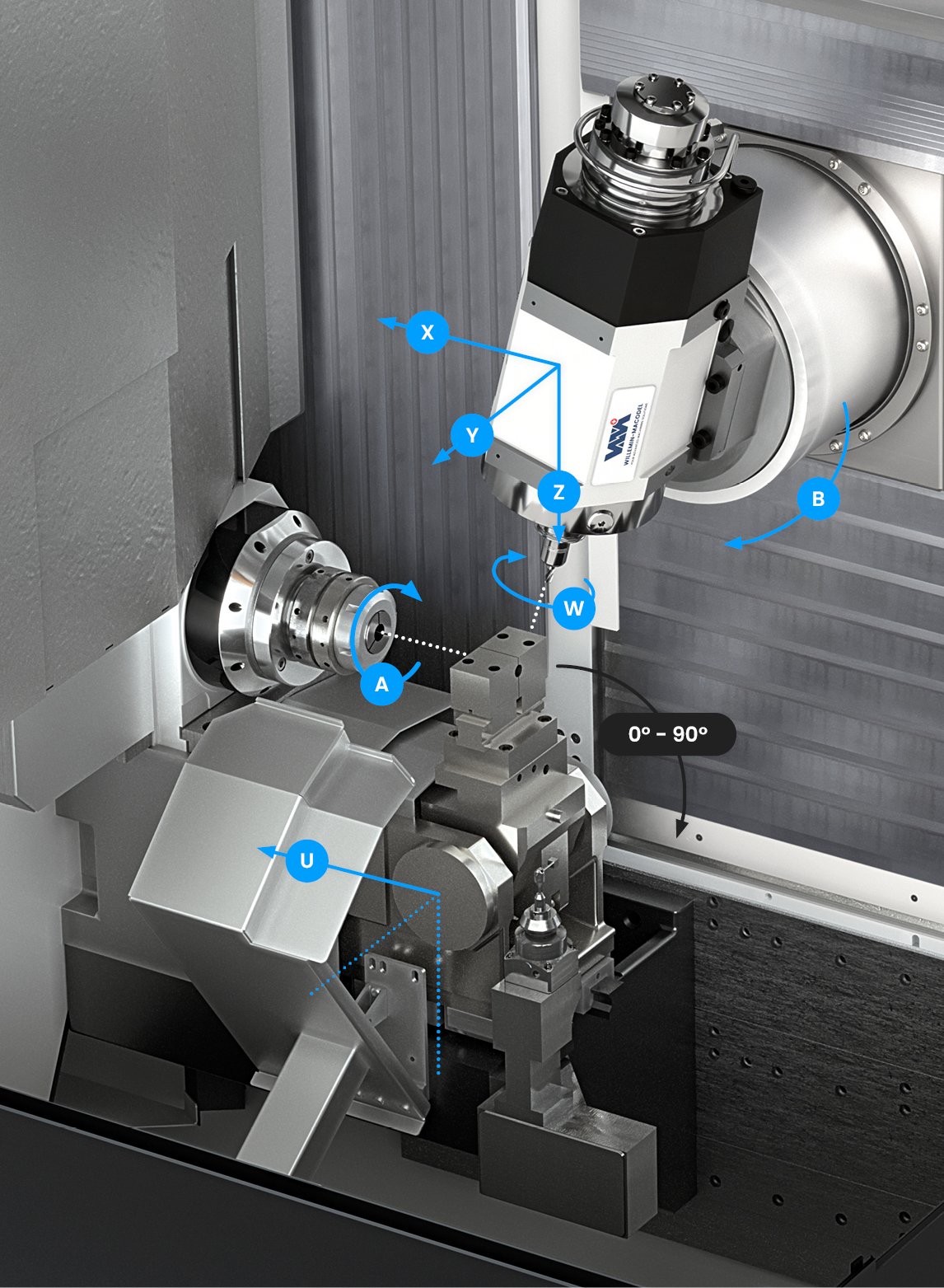

The 408MT is a multi-process machining center (milling and turning) with 6 to 7 axes for machining complex geometries from bar stock or individual blanks.
Thanks to its pick-up unit, it machines parts in a single cycle, on all 6 sides. It can accommodate pallets both on the A axis and on the pick-up unit, ensuring rapid series changeover.
The benchmark for productivity per m²
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Optimal compactness with integrated components, limiting the footprint to just 3 m².
- 2-position pick-up unit for precision vise or collets
- Maximum bar passage of 36 mm with a turning capacity of up to 6,000 rpm
- Maximum capacity of 72 on-board tools, for fast set-up changes
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
X – Y – Z travel
250 – 200 – 310 mm
Max. feed speed
40 m/min
Resolution
0.0125 µm
Horizontal axis A
Max. bar passage
Ø36 mm
Rotary indexing unit interface
A4 cone
Speed in milling mode
200 rpm
Turning mode speed
6’000 rpm
B-axis swivel
Drive
Torque motor
Angular movement
-15° to +100°
Max. feed speed
250 rpm
Resolution
0.0001°
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
Dimensions
Dimensions (W x D x H)
1685 x 1795 x 2305 mm
Floor area
3 m2
Other options
To customize your cell to your specific needs
Motorized spindle – S1
Through-spindle coolant via a rotary union
Horizontal axis A
Various clamps
Spindle reduction tube
Backworking
Pneumatically or hydraulically actuated vise
Pick-up collet
Peripheral
Bar pusher and bar loader
Cooling unit
Filtration
Chip tray with drawer
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion mist extractor
Automation
Robot or manipulator
Various options
Fire protection
S1 tool measurement
S1 workpiece inspection

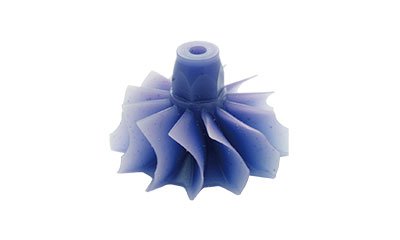

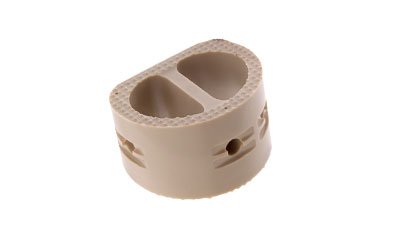

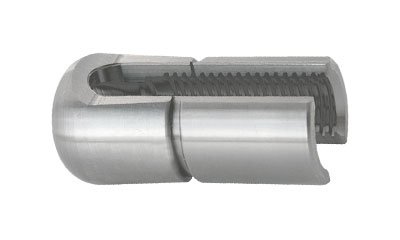

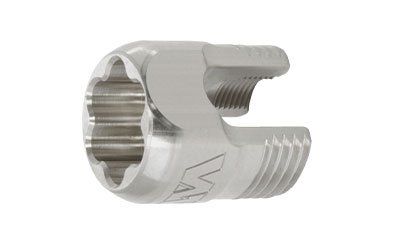

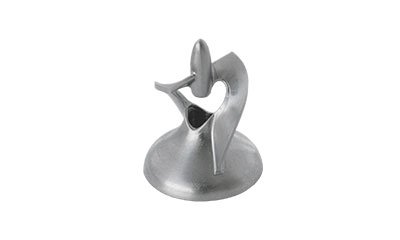

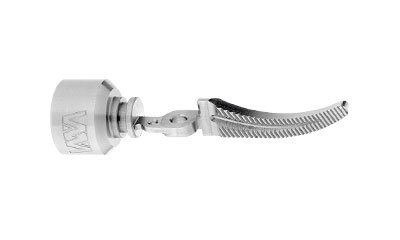

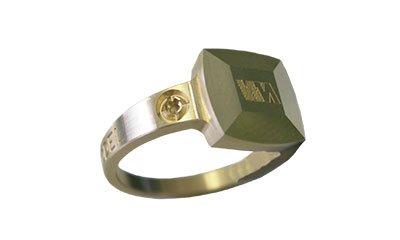

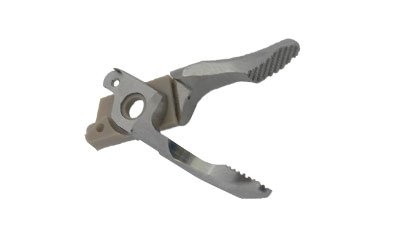

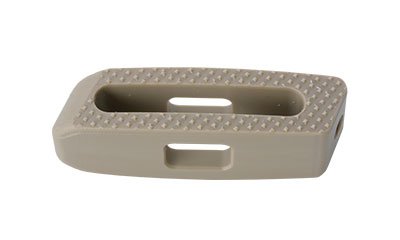

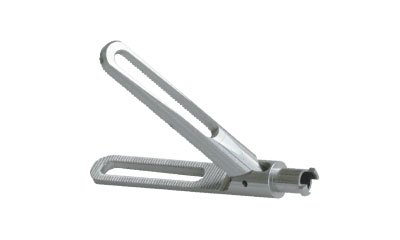

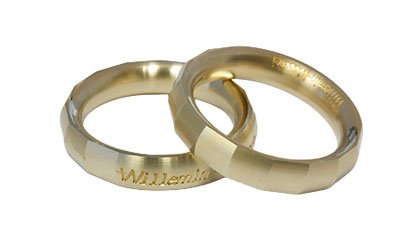

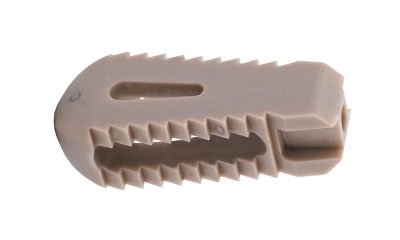

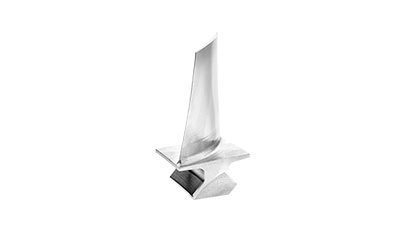

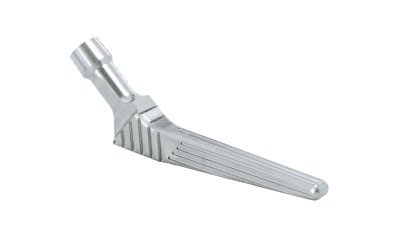

Application examples
Our team of experts is here to make your project a success.
Push button
Stainless steel
Cercle d'emboitage
Brass
Bracelet link
Stainless steel
Anchor
Steel
Wheel
Steel

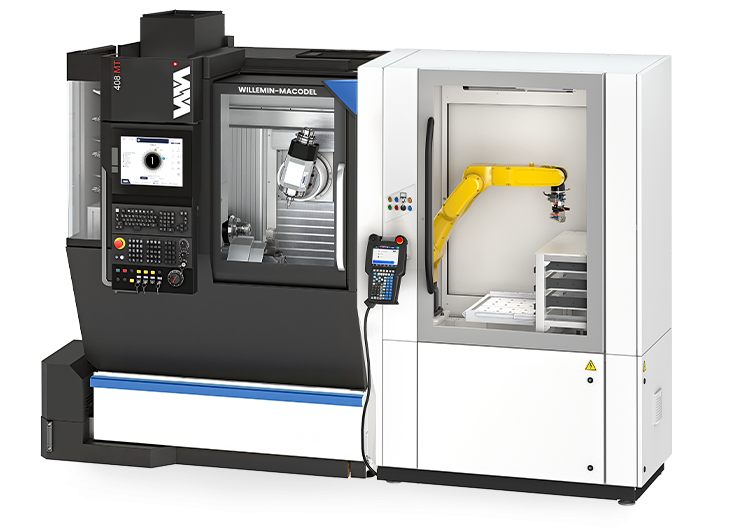

Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
