machining center

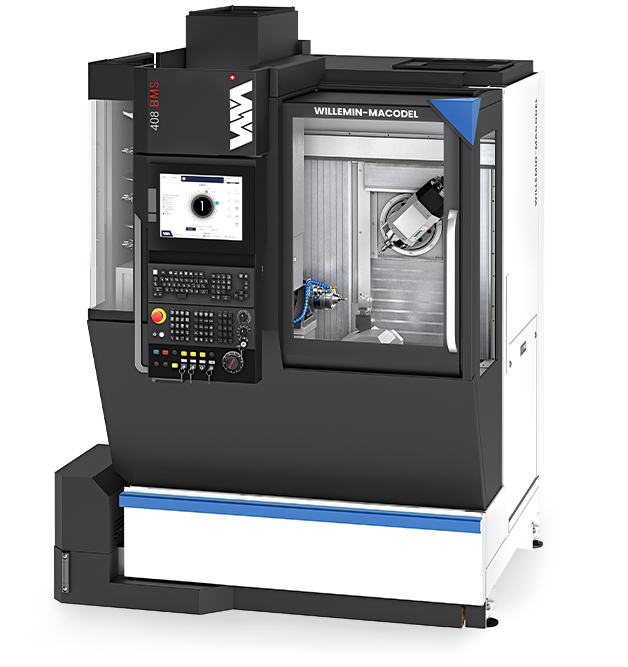

408BMS
The 408BMS is a multi-process machining center dedicated exclusively to milling, with 6 to 7 axes for machining complex geometries from bar stock or individual blanks.
The combination of the A-axis and the multi-axis automatic backworking unit enables simultaneous machining of two parts, for complete part control.
Perfect machining, with no variations in precision and unbeatable cycle times.
Double-speed bar milling
- High-performance motorized spindle with speeds of up to 42,000 rpm
- Optimal compactness with integrated components, limiting the footprint to just 3 m².
- Backworking unit enabling simultaneous machining for productivity gains of up to 40%.
- Machining of larger parts thanks to its maximum bar passage of 40 mm
- Maximum capacity of 80 on-board tools, for fast set-up changes
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
X – Y – Z travel
250 – 200 – 310 mm
Max. feed speed
40 m/min
Resolution
0.0125 µm
Backworking linear axes
X -Y -Z stroke
50 – 120 – 130 mm
Max. feed speed
20 m/min
Horizontal axis A
Max. bar passage
Ø40 mm
Rotary indexing unit interface
A4 cone
Speed in milling mode
200 rpm
B-axis swivel
Drive
Torque motor
Angular movement
-15° to +100°
Max. feed speed
250 rpm
Resolution
0.0001°
Backworking unit
Positions
3 positions: 0° – 90° – 180°.
Motorized spindle – S1
Interface
HSK-E40 (HSK-A40/CAPTO C4)
Max. speed
30’000 rpm (42’000 rpm)
Lubrication
Air-oil (Grease)
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Motorized spindle – S3
Interface
HSK-E25
Max. speed
45’000 rpm
DTS (Dynamic Thermal Stabilization)
Integrated
Tool magazine – S1
Number of tools
48 (72)
Tool-to-tool changeover
0.8 sec
Chip-to-chip change
< 3 sec
Tool management
Integrated
Tool breakage detection
During machining
Tool magazine – S3
Number of tools
8
Tool management
Integrated
Numerical control
FANUC
31i-B5 PLUS iHMI Pro
Dimensions
Dimensions (W x D x H)
1685 x 1795 x 2305 mm
Floor area
3 m2
Other options
To customize your cell to your specific needs
S1 motorized spindle
Through-spindle coolant via a rotary union
Horizontal axis A
Various clamps
Spindle reduction tube
Ø42 mm bar passage
Backworking
Pneumatically or hydraulically actuated vise
Peripheral
Bar pusher and bar loader
Cooling unit
Filtration
Chip tray with drawer
HP paper filter 80 or 150 bar
Precious metals kit
Chip conveyor
Oil or emulsion mist extractor

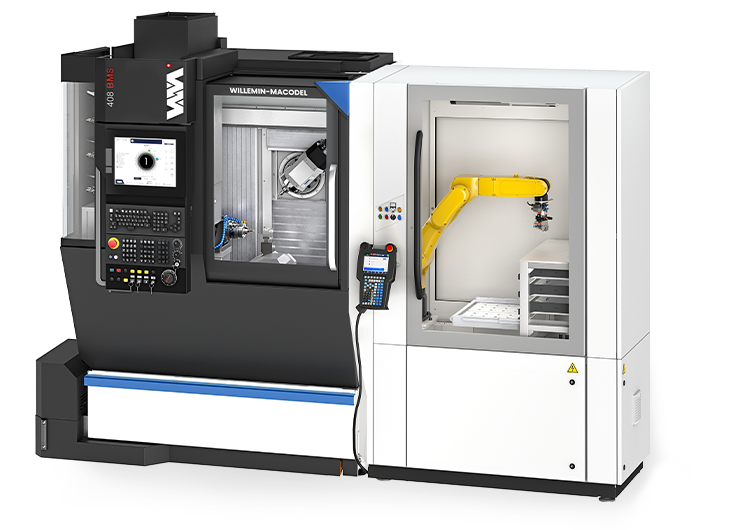

Automation
Robot or manipulator
Various options
Fire protection
S1/S3 tool measurement
Part inspection S1/S3
