machining center

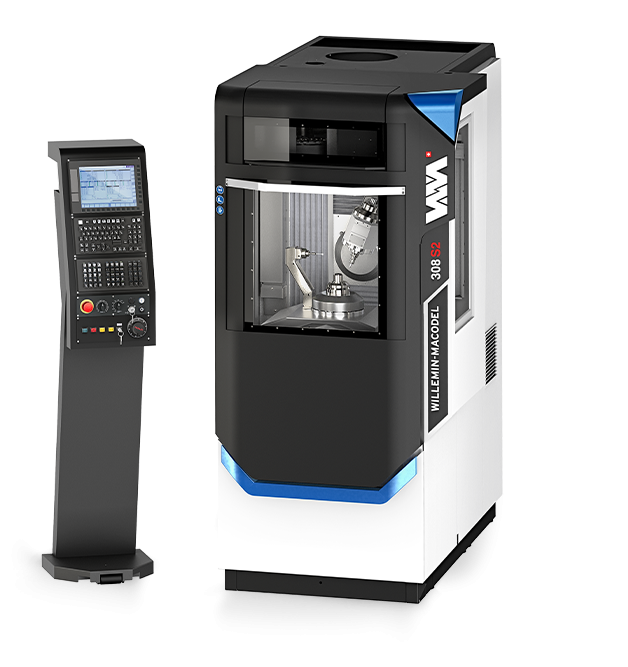

308S2
The 308S2 is a 5-axis machining center, dedicated to the machining of small, complex prismatic parts, either in billets or pallets. Extremely compact, it is primarily designed for high-precision milling and turning machining.
Thanks to an optimized kinematic chain, it guarantees high rigidity between the tool tip and the workpiece.
Concentrated expertise
- High-performance motorized spindle with speeds of up to 60,000 min-1
- Angular movement of the motorized spindle over 150°, giving it a very wide amplitude
- Maximum compactness with integrated aggregates limiting footprint to 1.5m2
- Machining of parts up to a diameter of 120 mm
- C-axis dividers for turning capacities up to 4,000 min-1
main technical data
Our machining centers are 100% customizable, thanks to a wide range of options and equipment.
Commercial base
Basic equipment (and options).
Main linear axes
Race X – Y – Z
270 – 120 – 220 mm
Max. feed speed
20 m/min
Resolution
0.1 µm
Pivot pin B
Training
Torque motor
Angular movement
-35° à +115°
Max. feed speed
200 min-1
Resolution
0.0001°
C-axis divider
Training
Torque motor
S1 torque
20 nm
Rated torque
38 nm
Speed in milling mode
200 min-1
Turning mode speed
(4’000 min-1)
Tray
Ø120 mm
Load capacity
12 kg
Motorized spindle – S1
Interface
HSK-A32
Max. speed
40’000 min-1 (60’000 min-1)
Lubrication
Air-oil
Resolution
±0.02°
DTS (Dynamic Thermal Stabilization)
Integrated
Pick-up tool magazine – S1
Number of tools
28
Tool-to-tool changeover
6 sec
Chip-to-chip change
10 sec.
Tool management
Integrated
Tool breakage detection
Masked time
Numerical control
FANUC
0i-MF PLUS
Dimensions
Dimensions (W x D x H)
910 x 1715 x 1980 mm
Floor area
1.6 m2
Other options
For optimum customization of your needs.
Peripheral
Cooling unit
Automation
Robot or manipulator
Filtration
HP paper filter 80 or 150 bar
Precious metals kit
Oil or emulsion vapour extractor
Various options
Fire protection
S1 tool measurement
Part check S1
Application examples
Our team of experts is here to make your project a success.
Ornamental piston
Brass
Bracelet
Brass
Implant bar
Medical steel
Complete bridge
Cobalt-chrome
Bridges and implants
Cobalt-chrome
Boost your productivity
In addition to our machining centers, we offer a comprehensive range of automation solutions that perfectly match your production processes, enabling the development of highly productive solutions.
